Designed for workshops carrying out dry processing, the IWater Suction Wall effectively captures airborne dust using a water-based filtration system, improving air quality and creating a cleaner, safer workspace.
Extremely intuitive and simple maintenance.
Internal water nebulisation. Dry external environment.
Lower risk of silicosis, protecting operator health.
Width: 2.000mm
Height: 2.350mm
Depth: 1.000mm
Fans: 1
Power HP: 4.2
m3/hour: 9.000
Width: 3.000mm
Height: 2.350mm
Depth: 1.000mm
Fans: 1
Power HP: 4.2
m3/hour: 11.000
Width: 4.000mm
Height: 2.350mm
Depth: 1.000mm
Fans: 2
Power HP: 8
m3/hour: 22.000
Width: 5.000mm
Height: 2.350mm
Depth: 1.000mm
Fans: 2
Power HP: 8
m3/hour: 26.000
Width: 6.000mm
Height: 2.350mm
Depth: 1.000mm
Fans: 2
Power HP: 8
m3/hour: 33.000
Detail of air intake fan.
Control panel managing all the cabin operations.
Detail of the stopper, which avoids the passage of water drops in the fans.

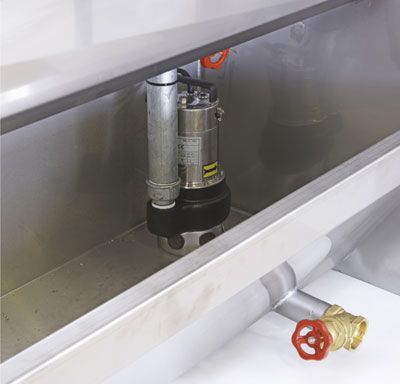

Submerged pump for water pressurisation and discharge point for easy maintenance.
Series of nozzles for water nebulization.
